Data-Efficient 3D Reconstruction: View Selection via Dataset Distillation

Researcher, 3D Gaussian Splatting (Robot Camera View Selection) · Mar. – Jun. 2026

Built a robot-camera-to-3DGS pipeline end to end and designed distillation-style view selection to keep a small, informative subset of frames, with pose-greedy selection best on PSNR/SSIM at small view counts.

Overview

3D Gaussian Splatting (3DGS) [1] builds a 3D scene from many posed images. A robot camera stream gives far more frames than reconstruction needs. This project asks which input views to keep, and uses a distillation-style setup to select a small, informative subset instead of training on every frame.

Goal stated in the project slides: a camera-to-3DGS pipeline that uses 50% of the frames (baseline: 100%).

Motivation

A 2D image stream only delivers the current frame. To understand space (passages, obstacles, depth), a robot needs one 3D representation that merges many observations and can be reused for SLAM, mapping, and navigation.
Among candidate representations (raw image sequence, point cloud / RGB-D, mesh / TSDF, NeRF [2], 3DGS), 3DGS was chosen as the best balance of expressiveness and practicality: it starts from RGB alone, its explicit Gaussians expose scene structure directly, and depth can be added later.

Problem

Early 3DGS trials on a real robot image stream showed that a good image stream is not the same as good reconstruction input:

Consecutive frames are highly redundant, with very small viewpoint changes.
Viewpoint diversity may not be sufficient.
Blur, dropped frames, and uneven quality appear in the stream.
So using every frame is not always best. The task becomes selecting keyframes to improve the reconstruction quality / cost trade-off.

Method

Pipeline. RGB-D images from a RealSense camera are published from a Jetson over a CycloneDDS topic and subscribed by the host system, which feeds them to 3DGS.
Baselines. Uniform stride, random, and angle-based sampling, compared with training on the full view set.
Distillation-style selection. The classification task of knowledge distillation is recast as input-view selection. A teacher 3DGS is trained on all images and a student on the selected images. The student is trained with the standard 3DGS loss against ground-truth images, plus a term that matches its rendered RGB images to the teacher's renderings.
View scores explored. Rendered-RGB score, gradient (view update) score, Gaussian visibility coverage, and pose diversity between views (pose-greedy).

Results

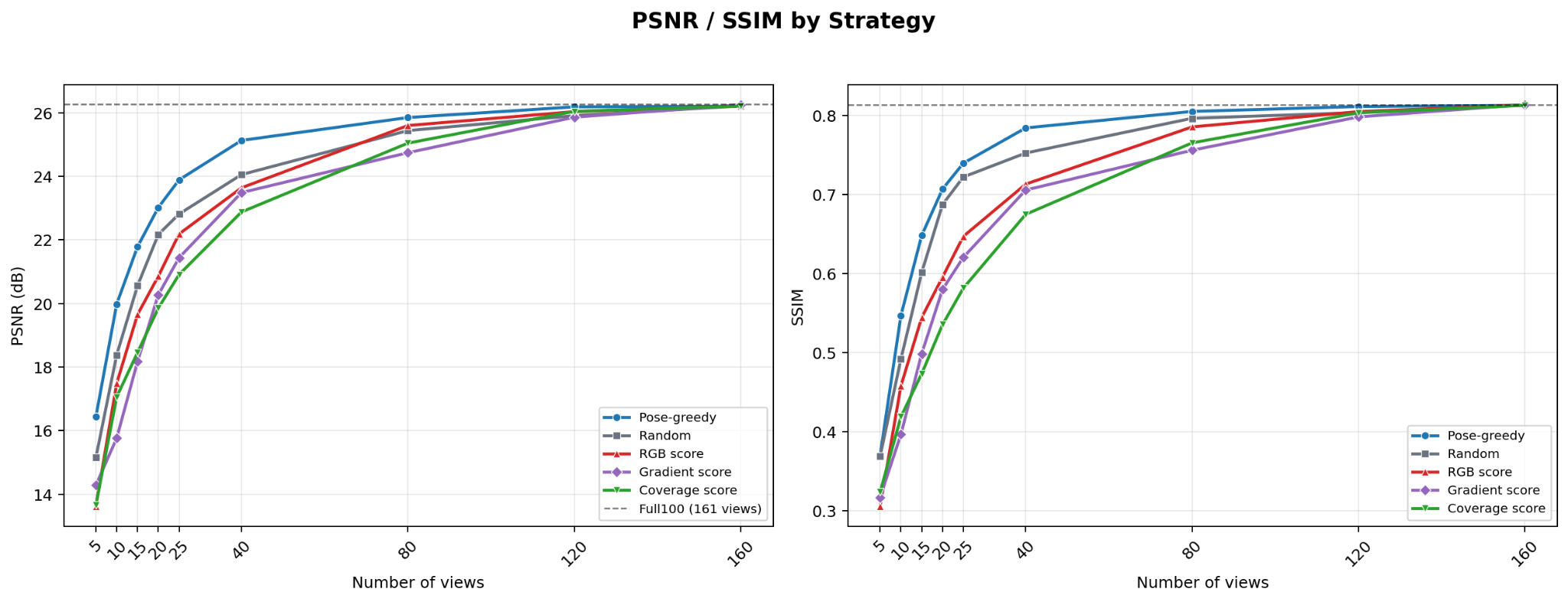

PSNR and SSIM versus number of input views for pose-greedy, random, RGB score, gradient score and coverage score selection, with the full 161-view reference line

PSNR and SSIM were measured as the number of selected views grows from 5 to 160, against the full set of 161 views.
Pose-greedy selection gave the highest PSNR and SSIM at small view counts. All strategies approach the full-view quality as the number of views grows toward 160.

Source: project progress slides (May 2026), “Result” slide.

My Role

Built the CycloneDDS image-streaming pipeline (RealSense on Jetson, publish/subscribe to the host) that provides the reconstruction input.
Ran the baseline 3DGS reconstructions and the frame-sampling baselines, and analyzed frame redundancy in the robot stream.
Designed the distillation-style view-selection setup and compared view-scoring strategies on PSNR / SSIM.

Tech: 3D Gaussian Splatting, PyTorch, CycloneDDS, Intel RealSense, NVIDIA Jetson.

Next Steps

Improve the distillation architecture.
Validate on other scenes and datasets.
Run it on the real camera pipeline.

References

Background work only; not results from this project.

B. Kerbl, G. Kopanas, T. Leimkühler, G. Drettakis. 3D Gaussian Splatting for Real-Time Radiance Field Rendering. SIGGRAPH 2023.
B. Mildenhall, P. P. Srinivasan, M. Tancik, J. T. Barron, R. Ramamoorthi, R. Ng. NeRF: Representing Scenes as Neural Radiance Fields for View Synthesis. ECCV 2020.
G. Hinton, O. Vinyals, J. Dean. Distilling the Knowledge in a Neural Network. arXiv:1503.02531.
